LTE MIMO Antenna

The Panorama LGMM low profile MIMO antenna range has been designed to support the new generation of vehicular LTE routers.

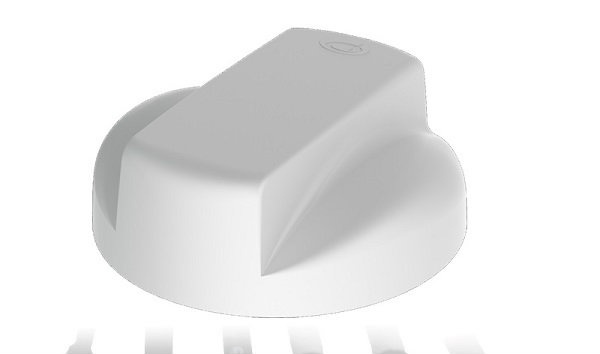

LGMTM Antenna

The antenna enclosure contains six isolated high performance antenna elements; two ultra-wideband elements covering 698-2700MHz support MiMo/diversity at cellular/LTE frequencies and three dual band elements covering 2.3-2.7 & 4.9-6GHz support MIMD/diversity operation for WIFI and WiMAX. The LGMM also contains a high performance GPS antenna with an integrated 26dB gain LNA and high quality filtering to combat
noise.

The antenna does not require a metallic ground plane, and maintains a high level of performance even when mounted on a non-metallic surface.

Operating Frequencies:

  • CELL FEED 1: 698-960 / 1710-2700 MHz
  • CELL FEED 2: 698-960 / 1710-2700 MHz
  • WIFI FEED 3. 2400-2485 / 4900-6000 MHz
  • WlFl FEED 4: 2400-2485 I 4900-6000 MHz
  • WIFI FEED 5. 2400-2485 / 4900-6000 MHz
  • GPS FEED 6: 1575 MHz 26dB LNA

Download LGMTM datasheet.
